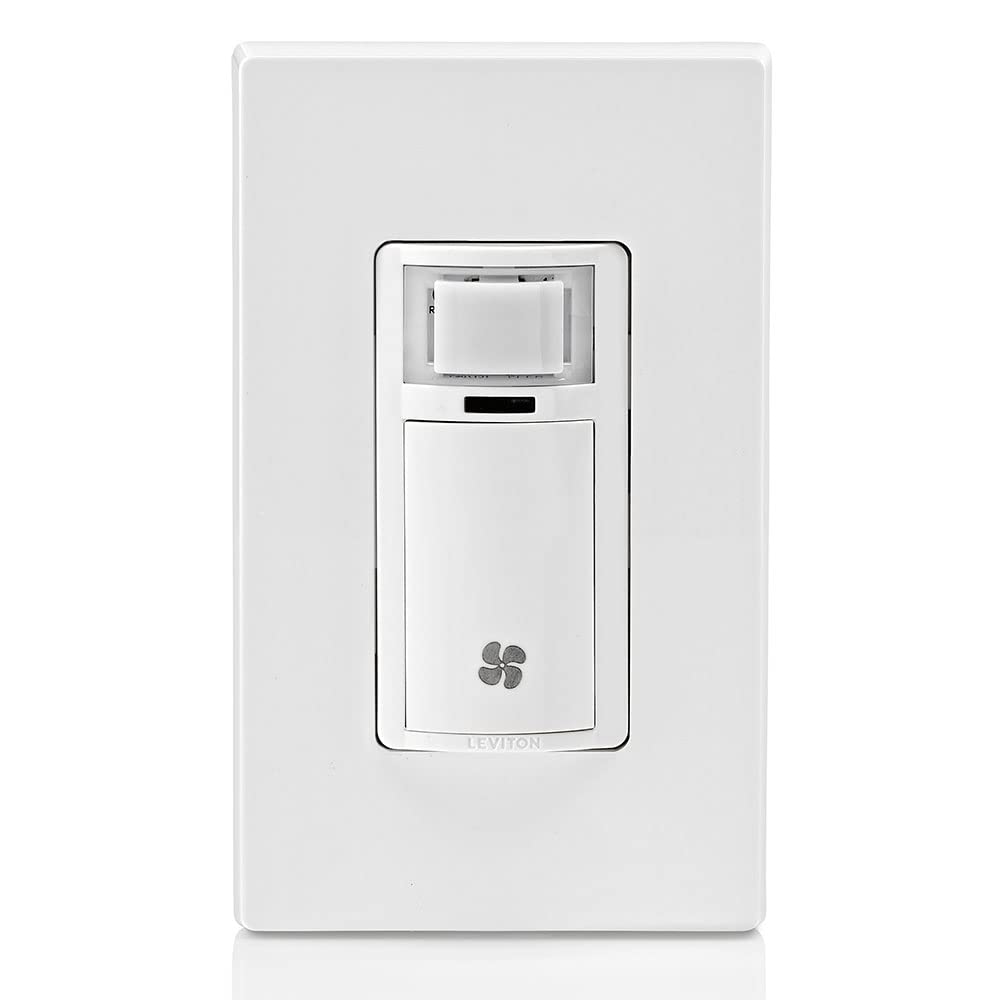

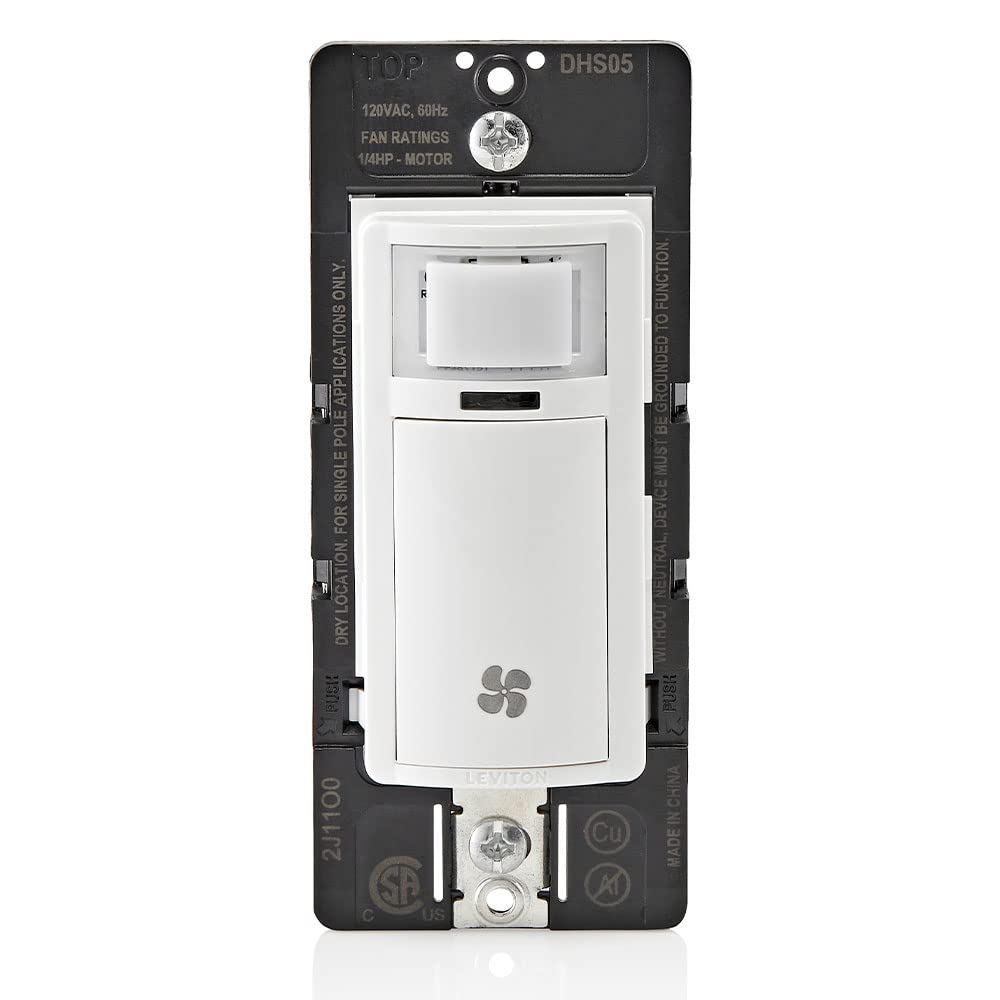

Leviton Humidity Sensor Switch for Bathroom Exhaust Fan, Automate Ventilation, Air Circulation, Moisture Control, ¼ HP, Single Pole, DHS05-1LW, White

About This

• CONVENIENT – automatically turns bath or ventilation fan on/off
• EASY TO INSTALL – slim profile fits in most wallboxes
• FLEXIBLE – can be installed with or without a neutral wire
• VERSATILE – adjust settings without tools or the need to remove faceplate and wallplate
• PRACTICAL – perfect for bathroom, basement, laundry room and spa

Overview

• Operation Mode : ON-OFF-ON
• Current Rating : 2 Amps
• Operating Voltage : 120 Volts
• Contact Type : Normally Open
• Connector Type : Crimp
• Brand : Leviton
• Switch Type : Relay
• Terminal : Spst
• Material : Plastic
• Item dimensions L x W x H : 4.13 x 1.73 x 1.38 inches
• At Leviton, we build what’s next to light, power, and connect everyday spaces, encompassing electrical, lighting, data networks, and energy management. With a rich history spanning over 120 years, Leviton develops thoughtful solutions that streamline processes, elevate safety standards, increase efficiency, and enhance productivity.
• Monitors humidity levels and turns your bath fan on/off automatically. Manually press to activate fan for immediate ventilation needs, and it will turn off automatically after the set time expires.
• Ensures the bathroom exhaust fan is only on when needed and not left on unintentionally.

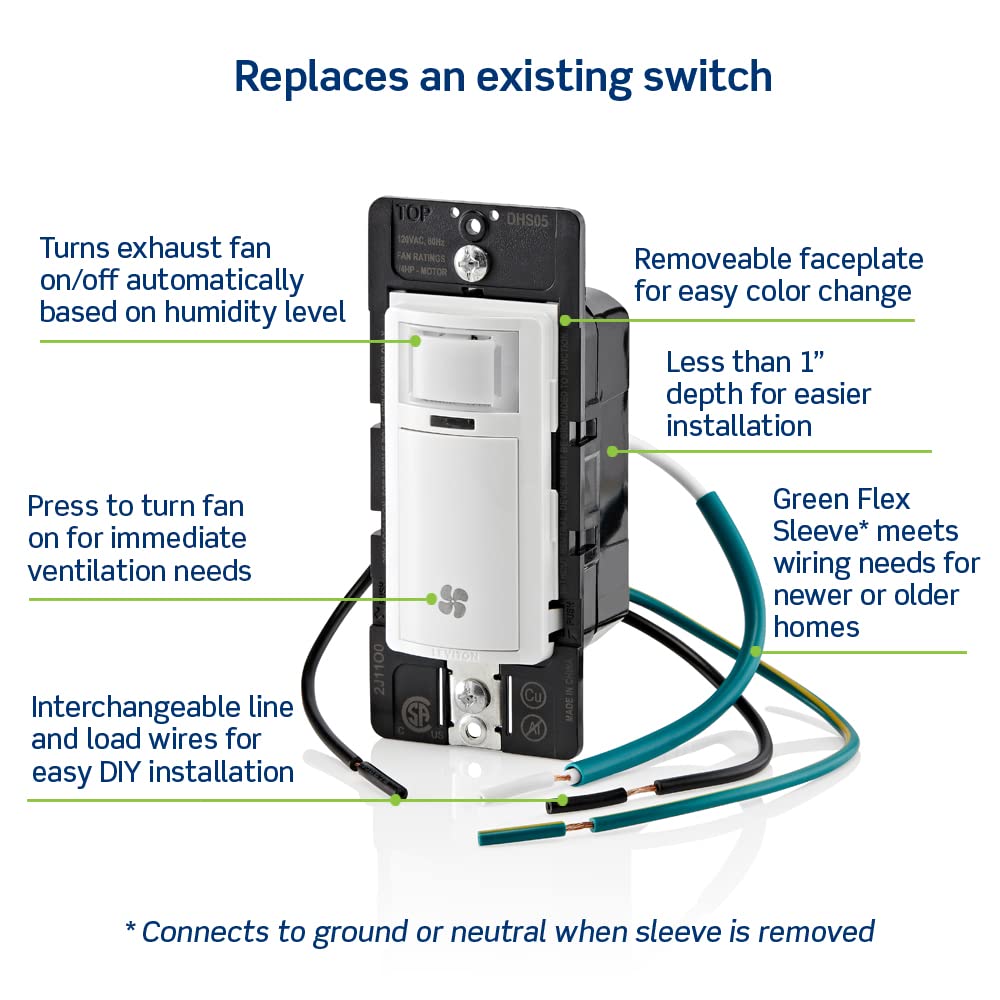

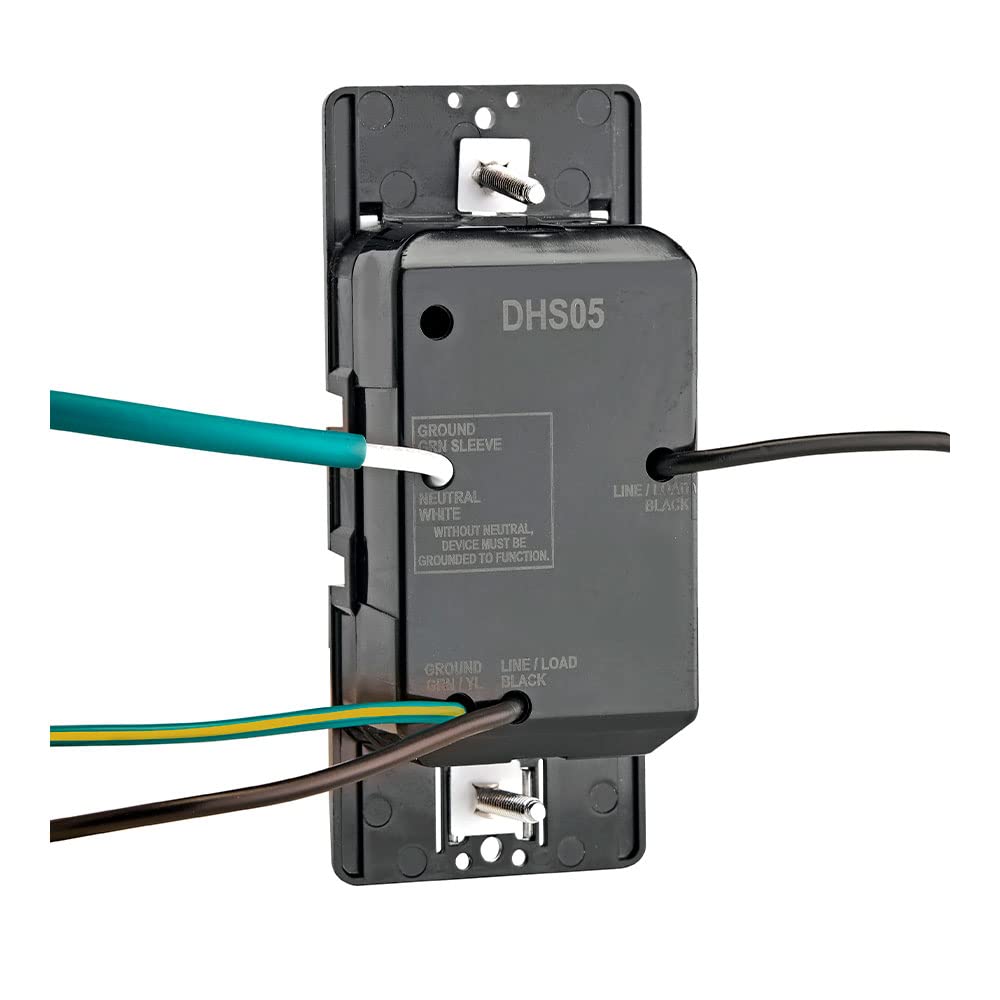

• Slim profile, flexible wiring options and interchangeable line and load wires reduce the likelihood of miswiring, saving time and making installation a DIY-friendly project.
• Provides automatic ventilation or set to air circulation for continuous operation with hourly preset time-outs. Ideal in areas prone to humidity like bathrooms, basements, laundry rooms and home spas
• If I install the Decora Humidity Sensor and Fan Control, can I manually control my exhaust fan?
• Yes, press the fan icon on the face of the device to manually activate the fan. The time that the fan will stay ON is pre-set to a default of 20 minutes, but can be adjusted to 10, 20, 30 or 45 minutes.
• What does the Air Cycle mode do?
• Air Cycle mode automatically turns ON a ventilation fan for a set period and repeats the cycle hourly (Ex: 20 minutes ON/40 minutes OFF each hour). Ideal in areas like basements or home spas which require periodic ventilation on a continuous basis.
• What does the Humidistat mode do?
• This mode turns ON a ventilation fan periodically while the relative humidity (RH) level is above the humidistat setting and repeats hourly until the level falls below the setting. Ideal in areas requiring periodic ventilation on a continuous basis.
• Can the Leviton Humidity Sensor and Fan Control operate a fan with a light load?
• Yes, if the light and fan are on the same “hot” switched leg. It is not recommended in applications where the fan/light combination is the sole light source in the room.
